Environmental chamber for mechanical test bench

Environmental chamber able to realize any type of environmental tests that combine a complex system with a mechanical, fluid or electrical test bench.

Chamber that enables to qualify or validate the functioning of your products while associating a perfect synchronization between test materials (chamber and bench).

Performances

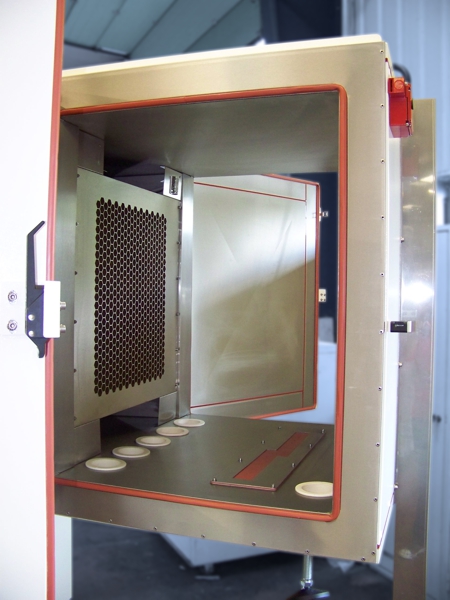

Environmental chamber for mechanical bench_ 2 cabinet doors open — Two doors open

Temperature range from -60°C to +200°C

Humidity range on request

Temperature transmission when loaded : 1°C/mm from 150°C to -40°C with a 145kg material load

Absorbed dissipation > 8000W at -40°C

Features

Test volume : on request from 150 dm³

Double door or simple door, with or without a viewing window
Air distribution by double flow or by simple flow
Walls with special portholes that allows the passing through of belts or motor shaft
Special outside design with customer bench dimensions constraints to respect
Electromagnetic door lock enabling the staff safety before the test starts
Regulation with SPIRALE VISION : data exchange and synchronization with the customer bench via ethernet or RS 232
Water cooling
Very special portholes
Average regulation on several probes
Air or water condensation
